KDE3500E
| WUXI KAIAO POWER MACHINERY CO., LTD | ||
| Contact person:Woody Email: woody3456@gmail.com | ||
| Mobile :+86-13771486346 MSN: woody888@live.cn | ||
| Web: http://www.wxkadl.com/ Tel:0086-510-85576899 | ||

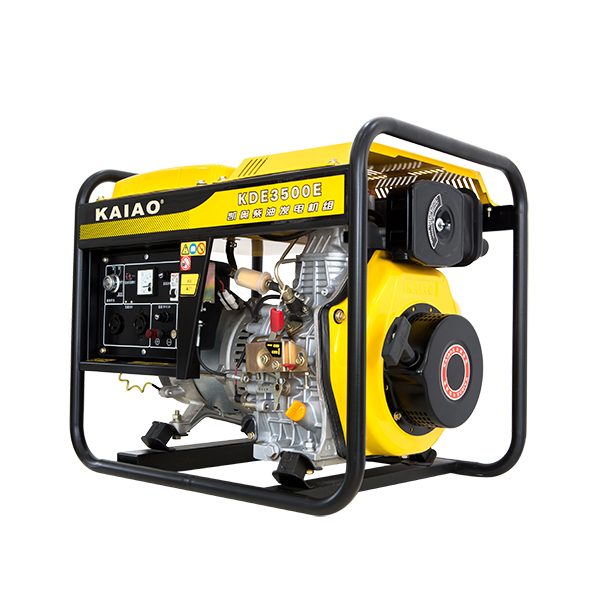

| 3KW KAIAO Diesel Generator KDE3500E | ||
| 型号 Model | KDE3500E | |
| 额定功率 Frequency (Hz) | 50 | 60 |
| 输出功率 Output power (KVA) | 2.8 | 3 |
| 最大功率 Max. Power(KVA) | 3 | 3.2 |
| 电压 Voltage (V) | 115/230 | 120/240 |
| 电流 Current (A) | 24.4/12.2 | 25/12.5 |
| 转速 Engine speed (r/min) | 3000 | 3600 |
| 相数 Phase | Single | |
| 功率因数 Power factor(cosφ) | 1 | |
| 励磁方式 Excitation system | Self-excited constant voltage | |
| 噪音 Noise level (7m) | DB (A): 77 | |
| 机组燃油箱容量 Fuel tank capacity (L) | 12.5 | |
| 结构型式 Structure | Open-frame | |
| 面板型式 Panel | Ordinary | |
| 输出插座 Outputsocket | Two | |
| 输出接线柱 Output terminal post | No | |
| DC12V输出 DC12V output | Terminal post | |
| 发动机型号 Engine Model | KA178F | |
| 缸径*行程 Bore*stroke (mm) | 78 *62 | |
| 排量 Displacement (L) | 0.296 | |
| 功率 Power (KW) | 3.68/3000 | 4/3600 |
| 燃油消耗率 Fuel consumption rate (g. KW/h) | 276.1 | 285.6 |
| 压缩比 Compression ratio | 20 | |
| 润滑方式 Lubrication system | Spring | |
| 启动方式 Engine starting system | 电启动 Electric starter | |
| 燃油型号 Diesel oil model | 夏天 Summer: 0#, 冬天 winter: -10# | |
| 润滑油型号 Lube oil model | SAE10W-30 (above CD grade) | |
| 润滑油容量 Lube oil capacity (L) | 1.1 | |
| 电池容量 Battery capacity(V-AH) | 12V-36Ah | |
| 净重 Net weight (KG) | 70 | |
| 尺寸 长*宽*高 Dimension(L*W*H) | 680×530×590 | |
