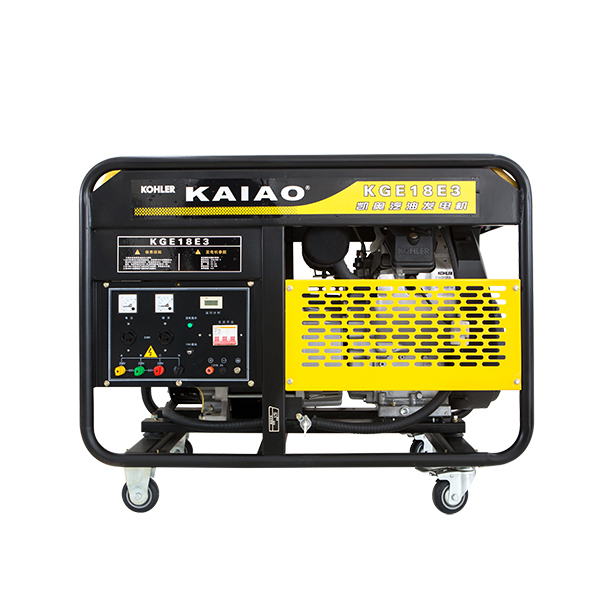

KGE18E3
| 型号 Model No.: | KGE18E3 | |
| 相数 Phase | Triple | |
| 额定功率 Rated Power (KVA) | 18.75 | |
| 最大输出功率 Max. Output Power(KVA) | 20.63 | |
| 额定频率 AC Frequency (Hz) | 50.0 | |
| 额定电压 AC Output Voltage (V) | 230/400 | |
| 额定电流 Rated Current (A) | 27.06 | |
| DC输出 DC Output (V/A) | 12 / 8.3 | |
| 功率因数 Power Factor | 0.8 | |
| 发动机型号 Engine Model | Pro CH980 | |
| 形式Type | V-twin cylinder,Air-cooled,4-stroke OHV | |
| 排量 Displacement (CC) | 999 | |
| 最大功率 Max. Power (HP/rpm) | 26.1 (35)/3600 | |
| 启动方式 Starting System | KEY | |
| 机组燃油箱容量 Fuel Tank Capacity (Ll) | 38 | |
| 尺寸 Packing Dimensions (mm) | 1085*735*790 | |
| 净重 Net Weight (KGS) | 198 | |
| 打包 Packing | Wdn Case | |
| 20’FCL (SETS) | 45 | |
| 40’HQ (SETS) | 99 | |
